Description

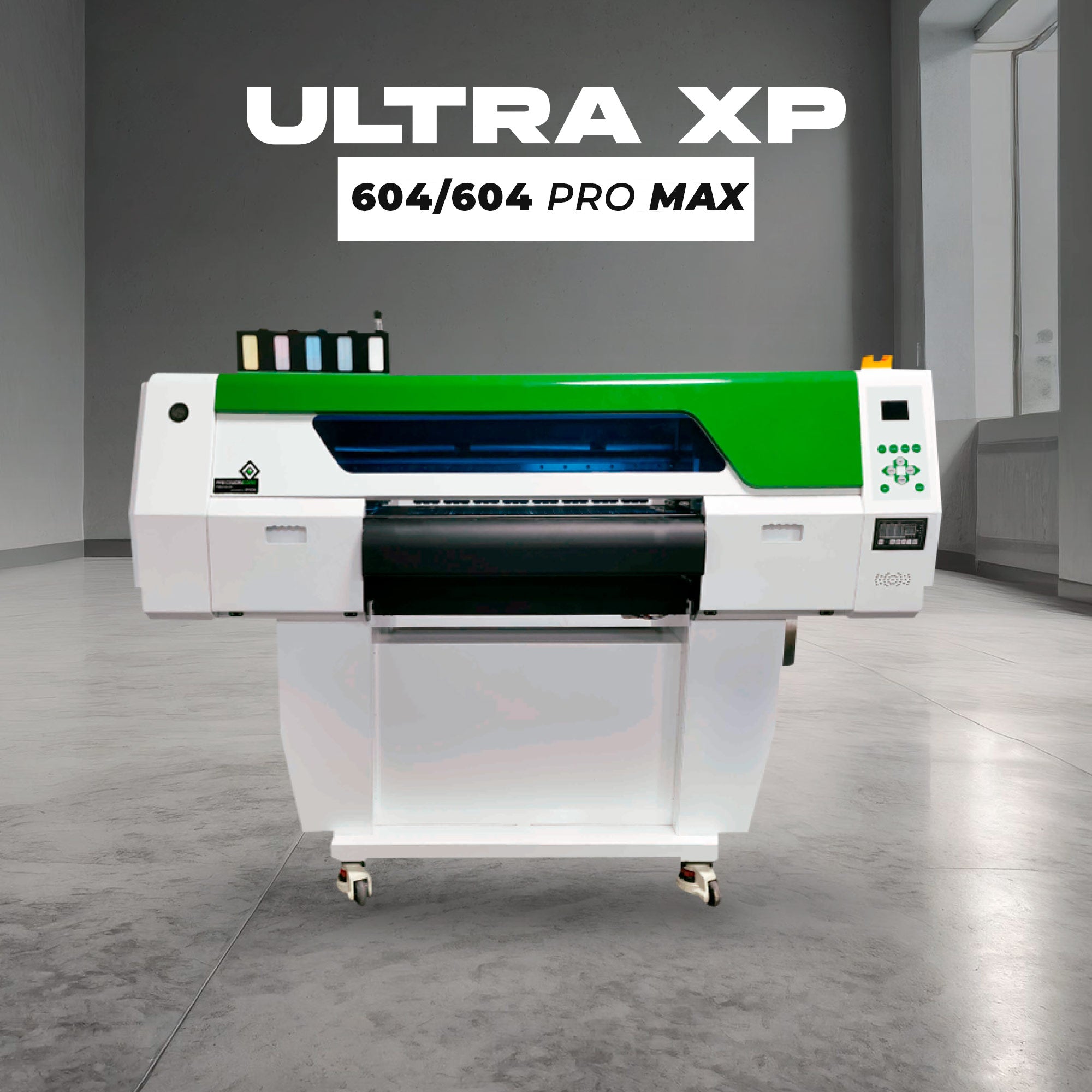

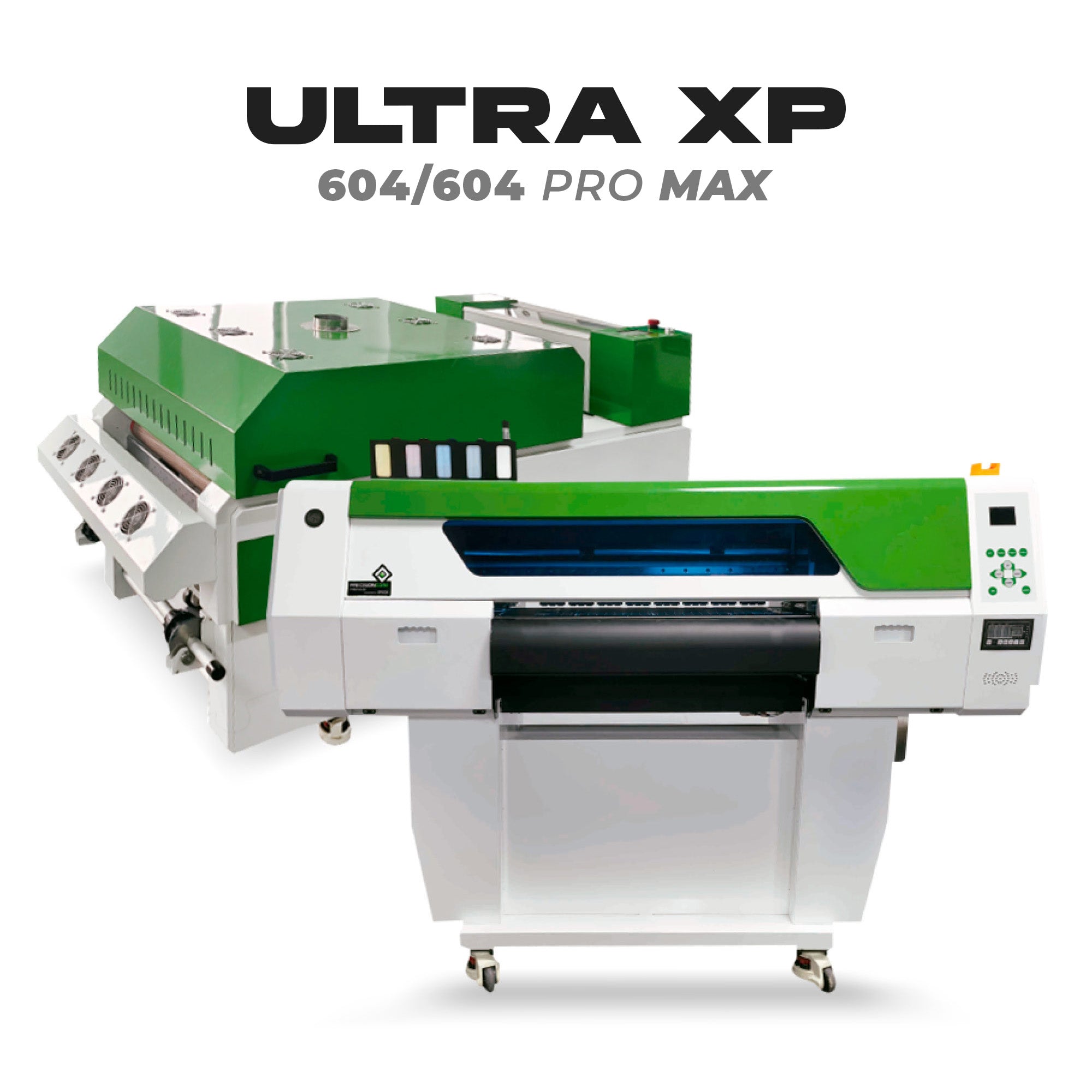

Ultra XP 604/602 Pro Max DTF Printer (24")
What it is: The Ultra XP 604/602 Pro Max is a 24-inch (604 mm) direct-to-film (DTF) printing system built for fast, consistent production of vibrant heat transfers on cotton, polyester, blends, denim, and more. It combines wide-format printing with a cleaner powder workflow and a stable bulk-ink setup to keep print shops running smoothly.
Why print shops choose the Ultra XP Pro Max
- 24" wide format (604 mm): Print bigger gang sheets, oversized designs, and multi-logo layouts.
- Production-focused workflow: Designed for repeatable output and fewer interruptions.
- Cleaner powder process: Consistent coating helps improve transfer uniformity and reduce mess.
- Bulk ink stability: Supports longer runs with fewer stoppages.
Choose Your Model
- Ultra XP 604 Pro Max — 4-head configuration for higher output and faster production
- Ultra XP 602 Pro Max — 2-head configuration for cost-efficient, professional output
Both options are designed to deliver sharp detail, smooth gradients, and strong color density for real commercial use.
Key Highlights
24" Wide Format Capability
With up to 604 mm (24") max print width, this system is ideal for:
- High-volume apparel production
- Large graphics and multi-logo layouts
- Oversized prints and signage-style transfers
Cleaner Powder Workflow
The powder shaking/color-fix workflow supports consistent coating and helps improve repeatability. This can reduce rework and keep day-to-day production cleaner and more predictable.
Wide Fabric Compatibility
Designed for reliable results on common DTF-friendly materials including cotton, polyester, blends, denim, and leather. (Final results may vary by fabric and heat-press settings.)
Durable, Wash-Resistant Transfers
Produces transfers built to resist fading, peeling, and cracking when properly cured and pressed.

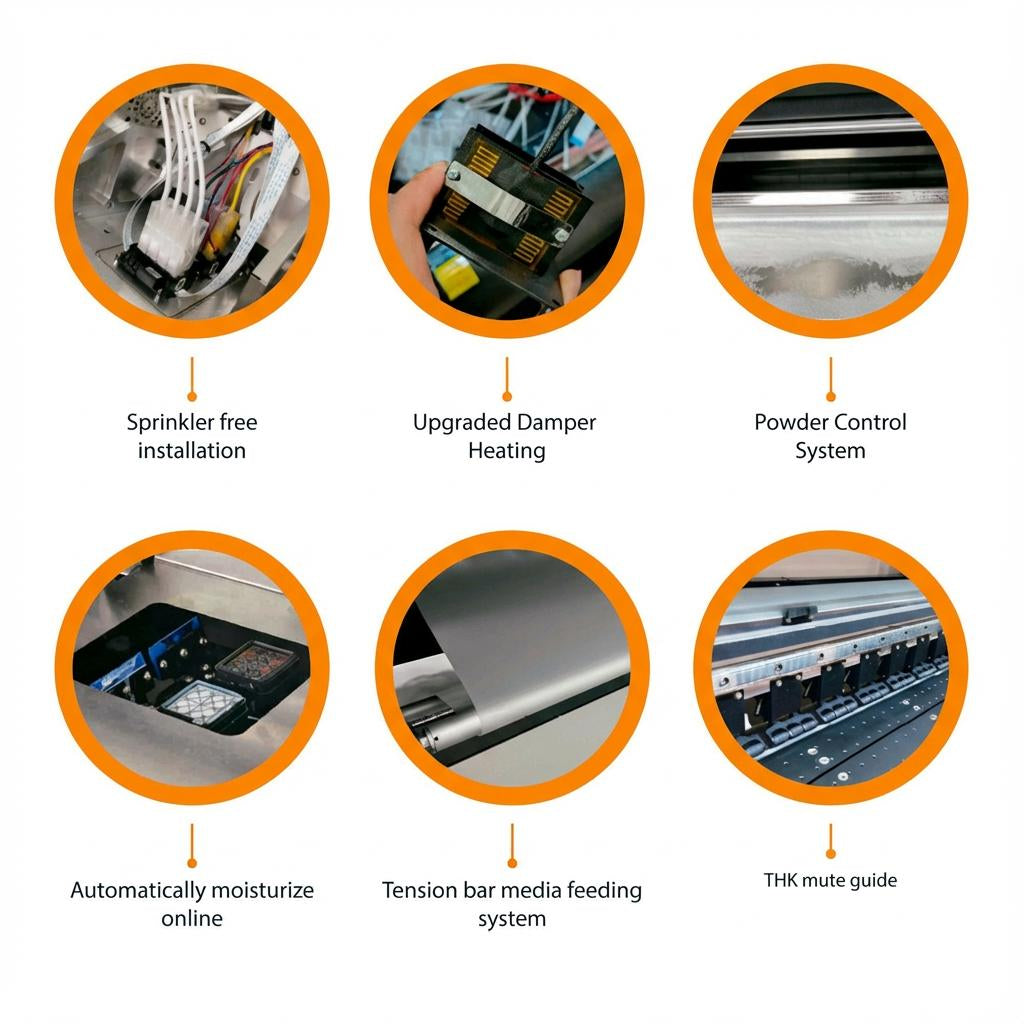

Pro Max Upgrades (Included)
- Upgraded damper system for smoother ink delivery and more stable printing
- Automatic online moisture control to help reduce clogging risk
- Tension bar media feeding for stable film tracking
- THK mute guide for precision movement and reduced operating noise
Printhead Information
Inkjet Printhead: i3200-A1
The i3200-A1 printhead is designed for high-resolution output and production-level durability, supporting up to 4-color printing with high nozzle density for consistent detail.
- Model: i3200-A1
- Ink type: Aqueous / water-based
- Technology: PrecisionCore MicroTFP
- Nozzles: 3200
- Nozzle rows: 8
- Resolution: 300 npi/row (600 npi per 2 rows)
- Colors supported: Up to 4
- Droplet size: 6 pl (single) / 6.3, 12.3 pl (multi)
FAQ
What can I print with a 24" DTF printer?
You can print larger gang sheets, oversized graphics, and multiple designs per run—ideal for faster production and better material usage.
What materials does it work on?
Common DTF-friendly materials like cotton, polyester, blends, denim, and leather. Heat press settings and curing quality will affect final durability.
Is this built for production use?
Yes—this system is designed for consistent output, repeatable workflows, and fewer interruptions in high-volume shop environments.
Important: Transfer performance depends on film, powder, curing, humidity, and heat-press settings. For best results, follow recommended curing and pressing guidelines.
Technical Specs
Ultra XP 604/602 Pro Max DTF Printer (24") — Technical Specs + Key Benefits
Quick answer (featured snippet-ready): The Ultra XP 604/602 Pro Max is a 24-inch (604 mm) DTF printing system built for fast production of vibrant heat transfers. It supports bulk ink, wide-format gang sheets, and a powder + curing workflow for consistent results on cotton, polyester, blends, denim, and more.
At-a-Glance Specifications
- Max print width: 600 mm (print width) / up to 604 mm (24") referenced wide format
- Media width: 620 mm
- Media thickness: up to 1 mm (39 mil)
- Printheads: 2 / 3 / 4 / 5 head options (model dependent)
- Ink type: Transfer pigment ink
- Interface: RJ-45 / LAN
- RIP software: Maintop & PhotoPrint
- Power: 50/60 Hz, 220V/110V, 10A
Choose Your Model
- Ultra XP 604 Pro Max — 4-head configuration for higher output
- Ultra XP 602 Pro Max — 2-head configuration for cost-efficient production
Full Technical Specifications
T-shirt Digital Heat Transfer Printing Machine
| Model | Ultra XP 604 Pro Max |
| Print Head | 2 / 3 / 4 / 5 print heads |
| Printing Technology | Piezoelectric inkjet |
| Acceptable Media (Width) | 620 mm |
| Acceptable Media (Thickness) | Maximum 39 mil (1 mm) |
| Printing Width | 600 mm |
| Ink Type | Transfer pigment ink |
| Ink Colors | 2/4/5 heads: 5 colors; 9 heads: 9 colors (CMYK / LcLm); Fluorescent optional |
| Applicable Medium | Transfer film |
| Color Management | ICC or density curve |
| Media Heating System | Powder & color fixing machine |
| Interface | RJ-45 / LAN |
| RIP Software | Maintop & PhotoPrint |
| Power Supply | 50HZ/60HZ, 220V/110V, 10A |
| Environment (Temp) | 20°C to 28°C |
| Environment (Humidity) | 65% to 75% |
| Dimensions (with stand) | L1840 mm × W780 mm × H1400 mm |
| Packing Dimensions | L1900 mm × W930 mm × H1320 mm |
| Weight | 165 kg |

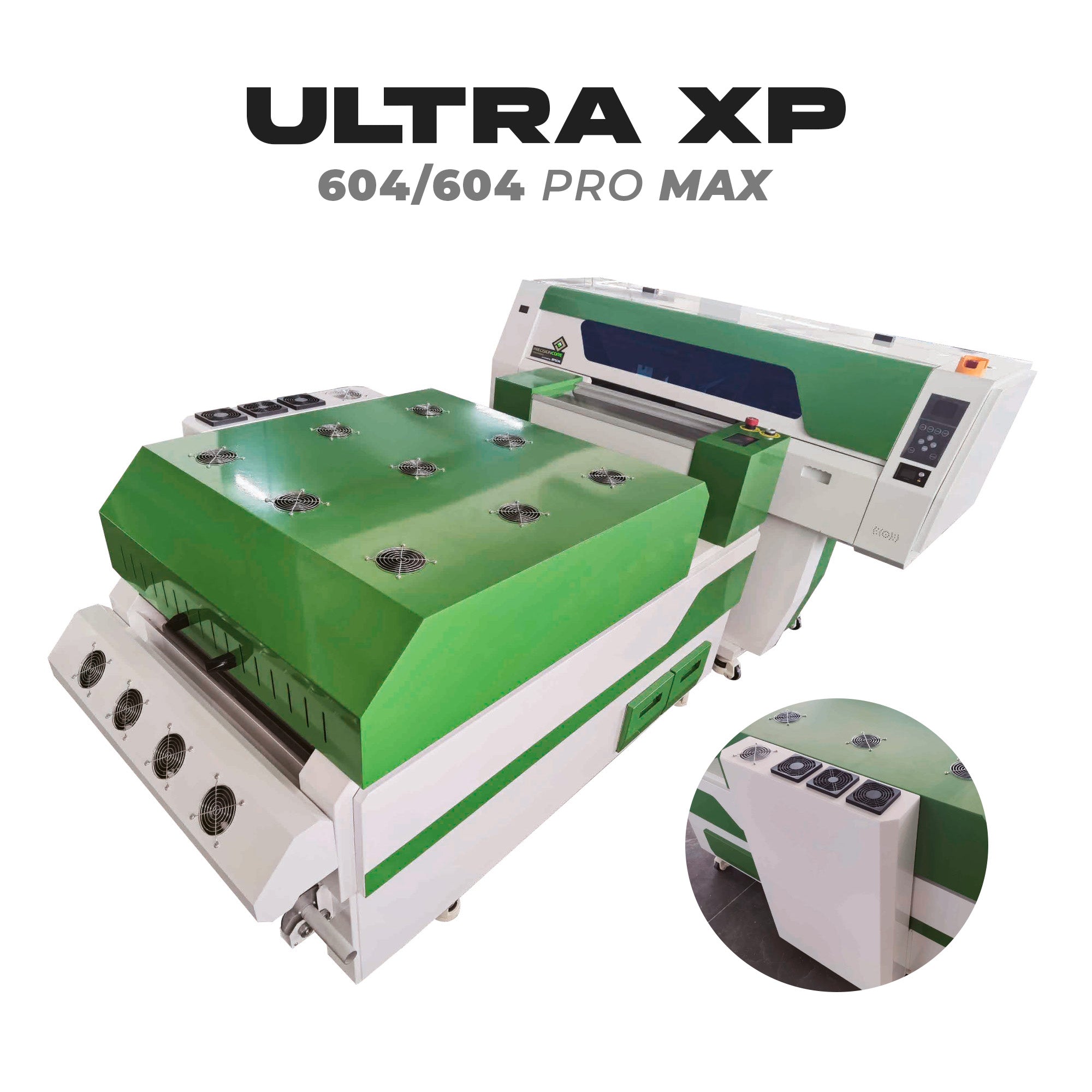

Shaking Powder and Color Fix Machine
| Model | Ultra XP 604 Pro Max |
| Media Width | 0–600 mm |
| Applicable Medium | Nylon, chemical fiber, cotton, leather, swimwear, wetsuit, PVC, EVA, etc. |
| Powder Control | Powder shake control, powder control, powder direction and volume control |
| Heating & Drying | Multi-stage heating system, drying, cold air fan function |
| Rewind Function | Automatic induction winding |
| Rated Voltage | 220V |
| Rated Current | 30A |
| Rated Power | 6.6KW |
| Power Consumption | 2.2 kWh – 5 kWh |
| Packing Size | 1900 × 1120 × 1180 mm |
| G.W. / N.W. | 235 kg / 210 kg |
| Powder Shaker Size | 1780 × 980 × 1040 mm / 1780 × 1100 × 1040 mm (built-in smoke filter) |
Shipping & Warranty
Shipping, Returns & Warranty Policy
Freight Shipping (Quote Required)
- This item ships via freight due to size and weight.
- Freight pricing is not included in the product price.
- A shipping quote is required before your order can be finalized and shipped.
- Delivery scheduling, access limitations (liftgate, limited access, residential, inside delivery), and remote-area fees may affect the final freight cost.
Order Processing & Shipping Confirmation
- Orders are processed once payment is confirmed and any required documentation is completed.
- You will receive shipping details and tracking (or freight PRO number) when the shipment is dispatched.
- Customer must be available to receive freight delivery. Missed appointments, re-delivery, storage, and return-to-sender fees are the customer’s responsibility.
Freight Delivery Inspection (Important)
- Inspect the shipment immediately upon delivery before signing.
- If there is visible damage, note it on the delivery paperwork and take photos.
- Claims may be denied if damage is not documented at delivery.
Returns, Cancellations & Restocking
- No returns, refunds, or cancellations once the printer(s) have shipped.
- If a cancellation is requested before shipment, it is subject to a 35% restocking fee.
- Custom-configured items, special orders, and freight shipments are final sale once shipped.
1-Year Limited Warranty (Mechanical & Electrical)
This product includes a 1-year limited warranty covering mechanical and electrical components under normal use and proper maintenance.
Printhead Coverage (Excluded)
- Printheads are not covered once installed and confirmed operational during installation/testing.
- Printheads are considered a consumable/precision component and are affected by ink, maintenance, environment, and operation.
Warranty Agreement Required
- Customers must sign our Warranty Agreement to activate and maintain warranty coverage.
- The Warranty Agreement outlines travel expenses, covered parts, and labor terms.
What the Warranty Does Not Cover
- Damage caused by misuse, neglect, improper installation, improper power supply, or environmental conditions (temperature/humidity/dust).
- Damage from unapproved inks/films/powders, improper curing/press settings, or lack of routine maintenance.
- Normal wear and tear, consumables, or cosmetic damage.
- Issues caused by unauthorized modifications or third-party repairs.
By purchasing, you acknowledge and agree to the shipping, cancellation, and warranty terms above.
